Notes from ENARSI and ENCORE sessions

NAT and PAT

how to configure NAT

config

  • configure inside interface
conf t
  interface gig 0/1
  ip nat inside

  interface gig 0/2
  ip nat outside
  exit

  ip nat inside source static 192.168.1.100 172.16.1.100
end

dynamic NAT

conf t
  interface gig 0/1
  ip nat inside

  interface gig 0/2
  ip nat outside

  access-list 1 permit 192.168.1.0 0.0.0.255
  ip nat pool POOL 172.16.1.100 172.16.1.199 netmask 255.255.255.0
  ip nat inside source list 1 pool POOL
end
wr

PAT configuration

conf t
  interface gig 0/1
  ip nat inside
  !
  interface gig 0/2
  ip nat outside
  !
  access-list 1 permit 192.168.1.0 0.0.0.255
  ip nat inside source list 1 interface gig0/2 overload

command to check the translations

show ip nat translations

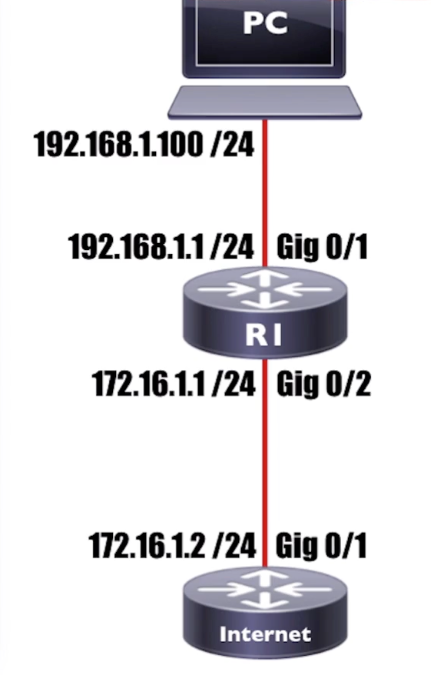

NTP

# router - internet
conf t
  clock set 18:00:00 April 20 2021
  clock timezone UTC +1
  ntp master 3
  end
wr

# router R1
conf t
  ntp server 1.1.1.1
  clock timezone UTC +1
  clock summer-time EDT recurring
  end
wr

NTP security

  • password authentication
# Internet Router
conf t
  ntp authentication-key 1 md5 Password
  ntp trusted key 1
  ntp authenticate
  end
wr

# R1
conf t
  ntp authentication-key 1 md5 Password
  ntp trusted key 1
  ntp authenticate
  end
wr
  • access list authentication
# Internet router
conf t
  ip access-list standard NTP-CLIENT
    permit 172.16.1.1
  ntp access-group serve-only NTP-CLIENT
  end
wr

# R1
conf t
  ip access-list standard NTP-SERVER
    permit 1.1.1.1
    exit
  ntp access-group peer NTP-SERVER
  end
wr

check NTP

show ntp status # to check the status of the sync
show ntp config # to check settings of NTP

HSRP & VRRP

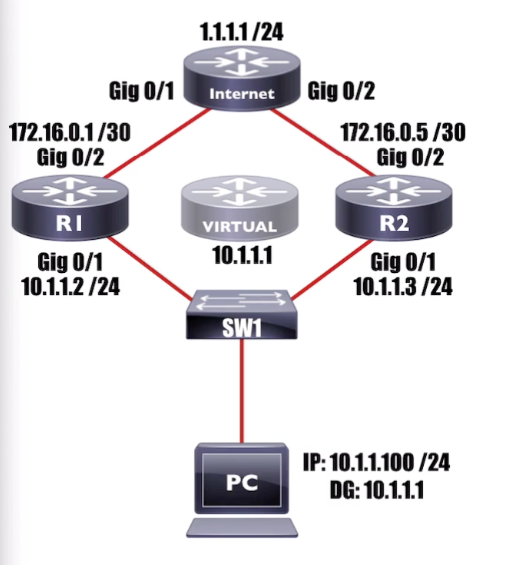

HSRP

HSRP01

# R1

conf t
  int gig 0/1
    standby 10 ip 10.1.1.1
    standby 10 preempt
    standby 10 priority 110
  end
wr

# R2

conf t
  int gig 0/1
    standby 10 ip 10.1.1.1
    standby 10 preempt
  end
wr
  • adjust timers ```sh conf t int gig 0/1 standby version 2 standby timers msec 50 msec 200 end wr

debug command

debug standby terse

tracking if internet interface is down

conf t int gig 0/1 standby 10 track 1 decrement 20 exit track 1 interface gig 0/2 line-protocol end wr


## VRRP

```sh
# R1

conf t
  int gig 0/1
  vrrp 10 ip 10.1.1.1
  vrrp 10 priority 110
  end
wr

# R2

conf t
  int gig 0/1
  vrrp 10 ip 10.1.1.1
  vrrp 10 priority 110
  end
wr

check status

show standby brief # check HSRP status
show vrrp brief    # check VRRP status

NETWORK MANAGEMENT

SNMP

# ver 2c
conf t
  snmp-server community COMUNITYro ro
  snmp-server community COMUNITYrw rw
  snmp-server location world, WO
  snmp-server contact daffy duck
  snmp-server host 3.3.3.3 version 2c COMUNITYsrv
  !
  snmp-server enable traps
  end
wr

# ver 3
conf t
  snmp-server engineID local 123456789
  snmp-server group DEMO-GROUP v3 priv
  snmp-server user DEMO-USER DEMO-GROUP v3 auth sha Password priv aes 256 Password
  end
wr

SYSLOG

conf t
  logging 2.2.2.2
  logging trap 5 # notifications
  end
wr

NETFLOW

conf t
  int gig 0/1
  ip flow ingress
  int gig 0/2
  ip flow ingress
  exit
  ip flow-export source gig 0/1
  ip flow-export version 5
  ip flow-export destination 192.168.1.50 9995
  end
wr
  • to check the flow
    show ip cache flow

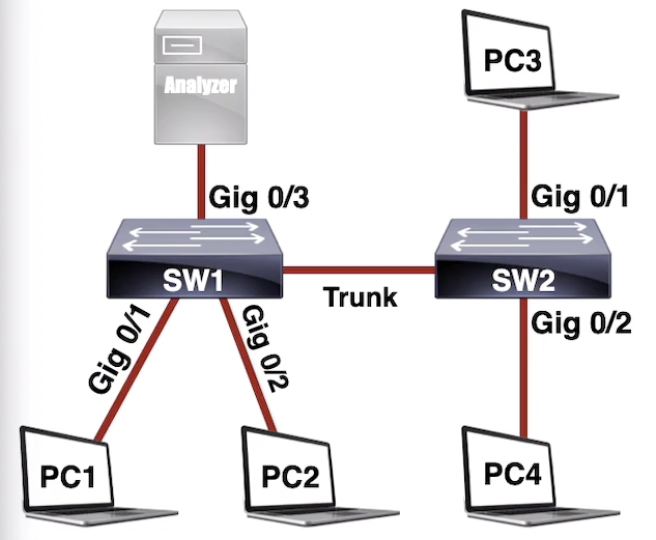

SPAN, RSPAN & ERSPAN

sample

SPAN

# SW01
conf t
  monitor session 1 source interface gig 0/1 - 2
  monitor session 1 destination interface gig 0/3

# check the status
show monitor session 1

ERSPAN

# R2
conf t
  monitor session 1 type rspan-source
    no shutdown
    source interface gig 2
    destination
      erspan-id 1
      ip address 10.1.1.2
      origin ip address 30.1.1.2
      end

# R1
conf t
  monitor session 1 type erspan-destination
    no shutdown
    destination interface gig 2
    source
      erspan-id 1
      ip address 10.1.1.2
      end

# chect the session
show monitor session 1

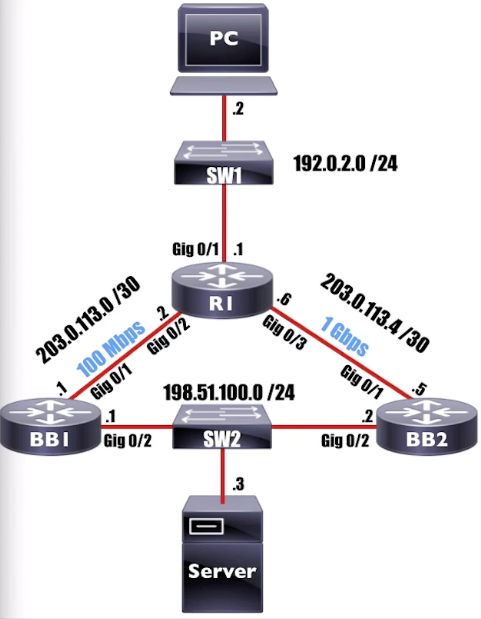

IP SLA

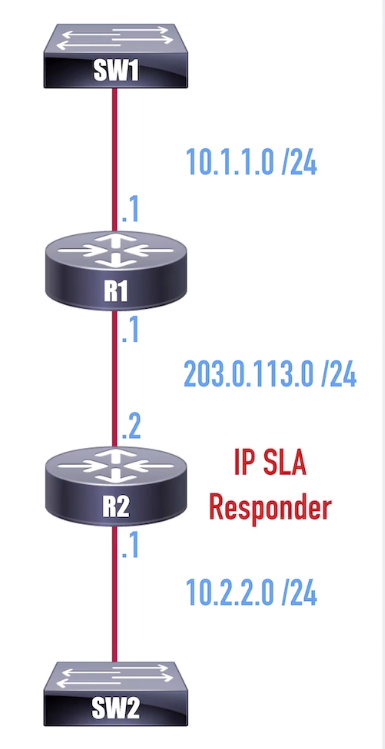

ip-sla

# R1 [example]
conf t
  ip sla 1
    udp-jitter 203.0.113.2 16384 codec g729a
    tos 184
    frequency 5
    exit
  ip sla schedule 1 start-time now life forever
  end

# check the ip sla
show ip sla statistics

ip-sla01

# R1
conf t
  ip sla 1
    icmp-echo 203.0.113.5 source-ip 192.0.2.1
      frequency 5
      threshold 100
      exit
  ip sla schedule 1 life forever start-time now
  track 1 ip sla 1
    delay down 10 up 10
