nmap security audit

tcp flags

–> Synchronization flag (SYN flag)

a packet with SYN flag set to 1 is sent to initiate a connection to a host as per classical 3-way handshake model.

–> Acknowledgement flag (ACK flag)

a packet with ACK flag set to 1 serves as a confirmation of getting the packets from sender

–> Push flag (PSH flag)

when PSH is set to 1, the sending application will inform that the data is to be sent immediately and on
the receiving end the TCP header will inform that data is to be pushed to the application immediately

–> Urgent flag (URG flag)

this flag is used to inform the receiving station about a certain segment of data to be prioritized.
The URG flag isn't much applied in most modern applications

–> Reset flag (RST flag)

when this flag bit is set to 1 by sender the ongoing connection breaks up

–> Finished flag (FIN flag)

when this flag is set to 1 it actually means that sender has finished sending all
data and the last packet contains the FIN flag.

understanding nmap results

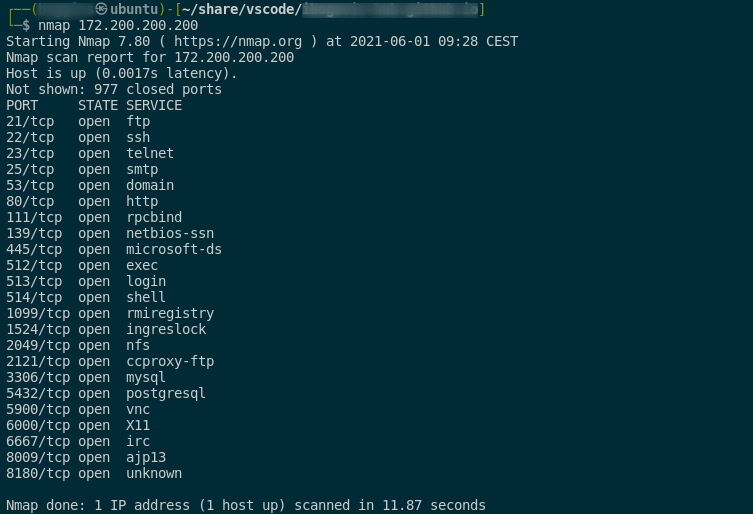

• example of a default scan:

port status description

nmap scan types

TCP SYN scan

syntax:

sudo nmap -sS <host/network/domain>

• it is default scan type
• it never completes the TCP handshake and so it is relatively faster and unobtrusive (Half-Open scan)

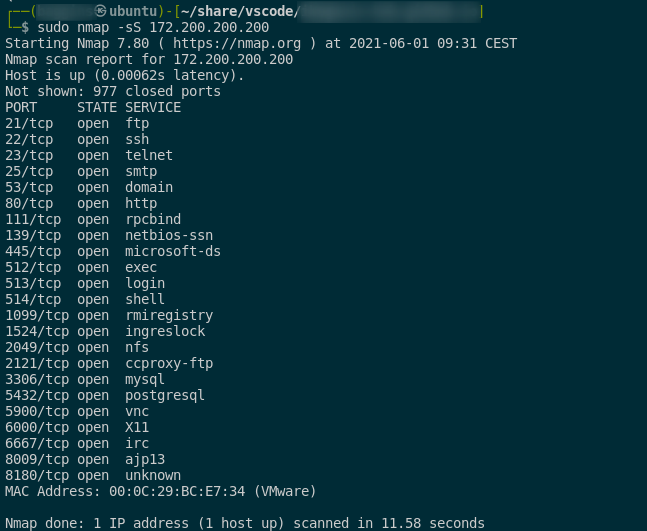

–> here is the example of TCP SYN scan:

TCP CONNECT scan

syntax:

sudo nmap -sT <host/network/domain>

• default type when TCP SYN scan is unavailable
• nmap is asking the operating system to initiate the connection to the remote machine
• this scan option is performing the full TCP 3 way handshake with the remote system and it takes more time compared to SYN scan
• connection requests are logged on the remote end

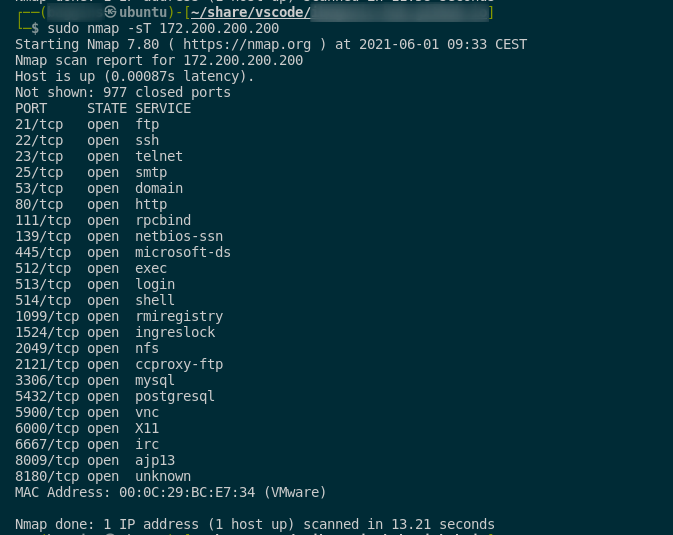

–> here is the example of TCP CONNECT scan:

FIN, NULL, XMAS scans

syntax:

: FIN scan
sudo nmap -sF <host/network/domain>

: NULL scan
sudo nmap -sN <host/network/domain>

: XMAS scan
sudo nmap -sX <host/network/domain>

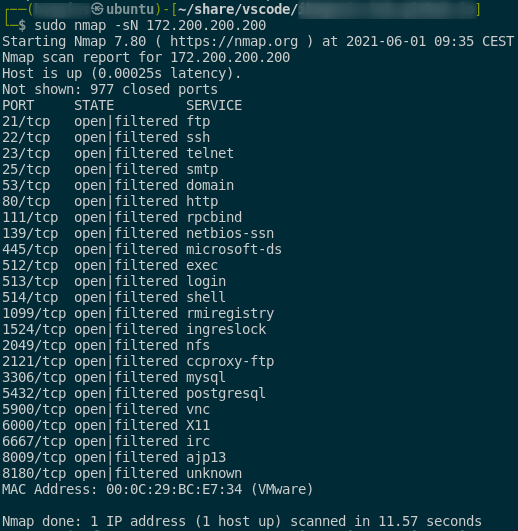

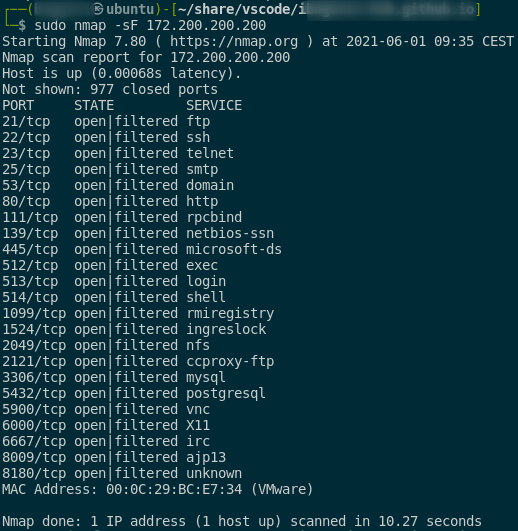

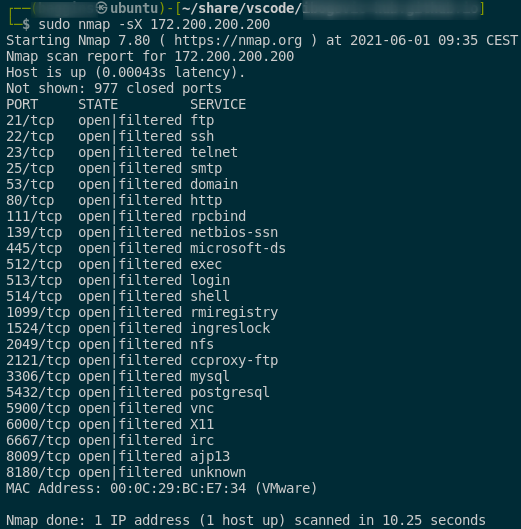

–> here is the example of mentioned scans:

• it is useful for firewall avoidance
• sending the packets without bit set

You can use switch --reason to get more info about the port result

Null scan (-sN)

• Does not set any bits (TCP flag header is 0)

FIN scan (-sF)

• Sets just the TCP FIN bit.

Xmas scan (-sX)

• Sets the FIN, PSH, and URG flags, lighting the packet up like a Christmas tree.

• These three scan types are exactly the same in behavior except for the TCP flags set in probe packets.
• If a RST packet is received, the port is considered closed, while no response means it is open / filtered.

• The port is marked filtered if an ICMP unreachable error (type 3, code 0, 1, 2, 3, 9, - 10, or 13) is received.

• The key advantage to these scan types is that they can sneak through certain - non-stateful firewalls and packet filtering routers.
• Another advantage is that these scan types are a little more stealthy than even a SYN scan.
• Don’t count on this thoug, most modern IDS products can be configured to detect them.
• The big downside is that not all systems follow RFC 793 to the letter. A number of systems send RST responses to the probes regardless of whether the port is open or not.
• This causes all of the ports to be labeled closed.
• Major operating systems that do this are Microsoft Windows, many Cisco devices, BSDI, - and IBM OS/400.
• This scan does work against most Unix-based systems though.
• Another downside of these scans is that they can’t distinguish open ports from certain - filtered ones, leaving you with the response open / filtered.

source

UDP scan

syntax:

sudo nmap -sU -p <port> <host/network/domain>

• this scan uses UDP protocol and useful to scan for devices with UDP services running
• well-known services running on UDP like:
  • DNS (port 53)
  • SNMP (ports 161 / 162)
  • DHCP (ports 67 / 68)
• UDP scan can be done along with TCP scan
• note that UDP scanning is time consuming and has to be used by specifying ports

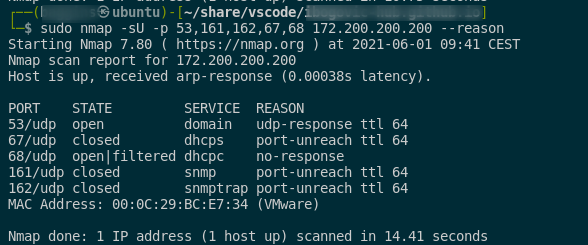

–> here is the example of mentioned scan:

SCTP init scan

syntax:

sudo nmap -sY <host/network/domain>

• SCTP (Stream Control Transmission Protocol) designed to transport Public Telephone Network (PSTN) signaling messages over IP networks
• as per rfc4960 this has wider applications
• this is relatively newer alternative to TCP and UDP protocols with newer features and characteristics of TCP & UDP
• like SYN scan it is stealth as it never completes the full handshake

–> currently I don’t have a device to show the scan.

other interesting nmap scans

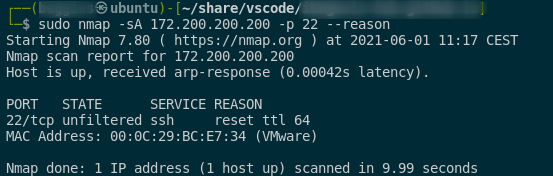

–> ACK scan (difference with SYN scan):

operating system detection

• the nmap-os-db database has more than 2600+ known OS fingerprints
• nmap performs extensive TCP ISN(Initial Sequence Numbers) sampling combined with various other parameters from the response and maps it with it database to give out details about the remote OS.
• it is very useful for determining vulnerability of target hosts, tailoring exploits, network inventory & support, detecting unauthorized devices.

Host discovery

• to scan every port of every IP address is rather unnecessary, inefficient & waste of time.
• with proper host discovery for a target network we can narrow down our scope to the devices to be tested.
• discovering hosts sometimes can be straightforward or complex, depending on the network being audited.
• nmap offers lots of possible options for host discovery.
• apart from the most basic ICMP pings, nmap employs different combination of TCP SYN/ACK UDP, SCTP INIT, ARP probes to locate hosts on a network.

other useful options

nmap scripts

• syntax example:

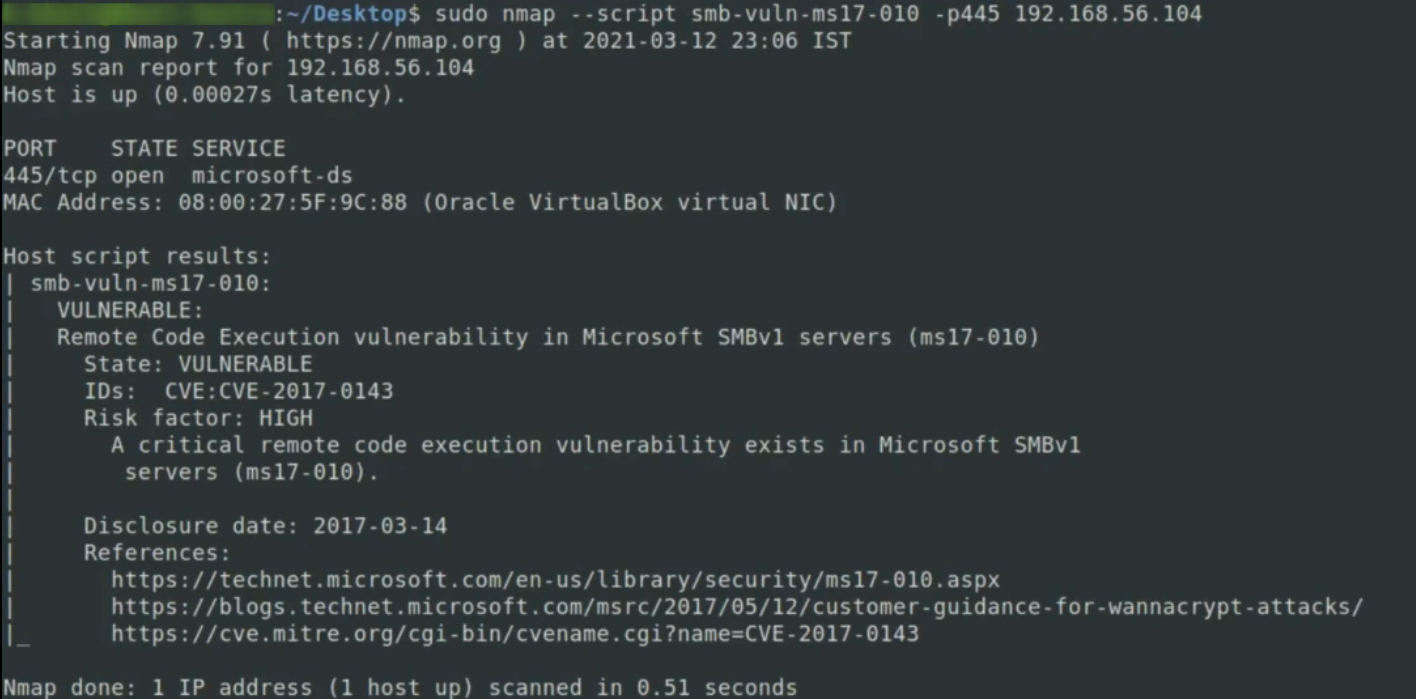

  • sbm vulnerability
    syntax:

    sudo nmap --script smb-vuln-ms17-010 -p 445 192.168.56.104

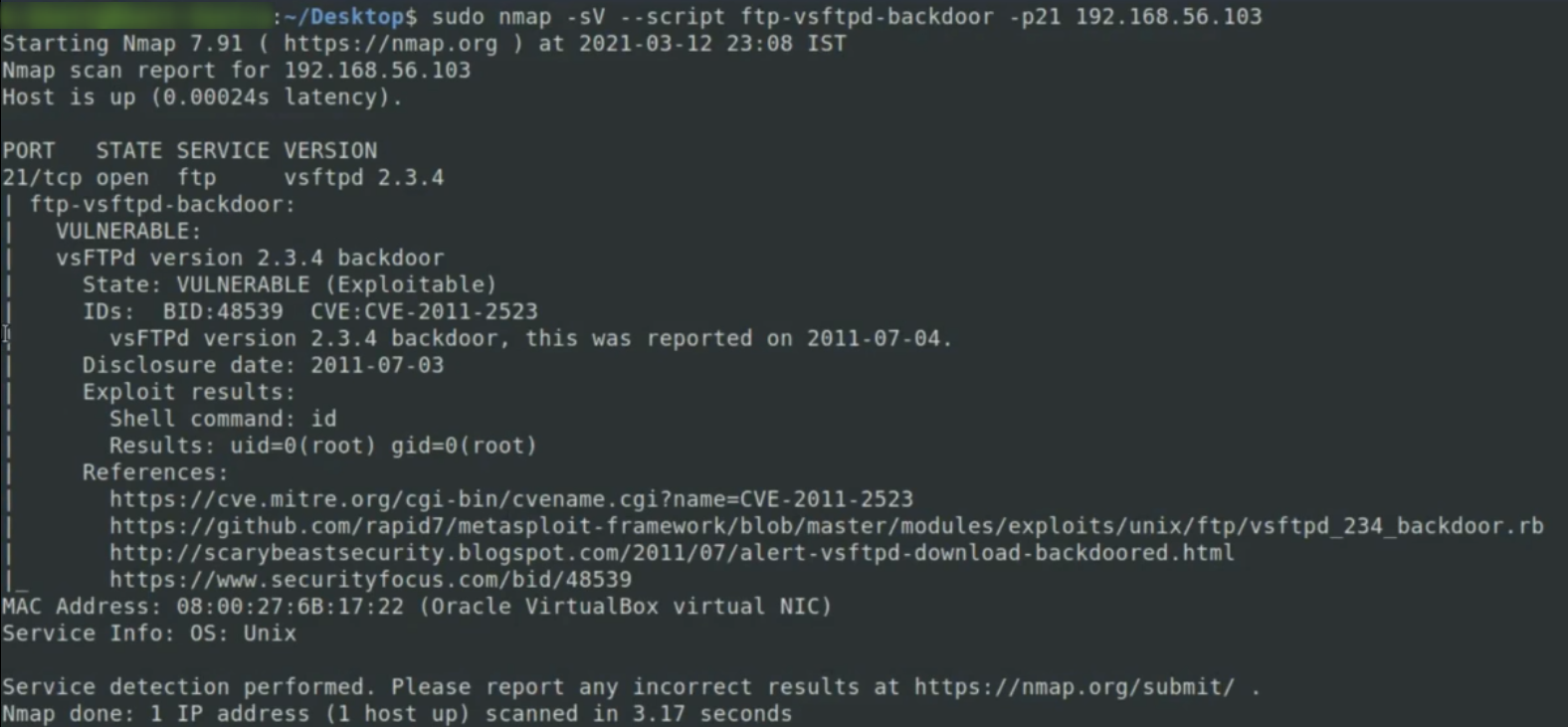

  • VSFTPD & UnrealIRCD backdoor check
    syntax:

    sudo nmap -sV --script ftp-vsftpd-backdoor -p 21 192.168.56.103


    • vsftpd syntax:

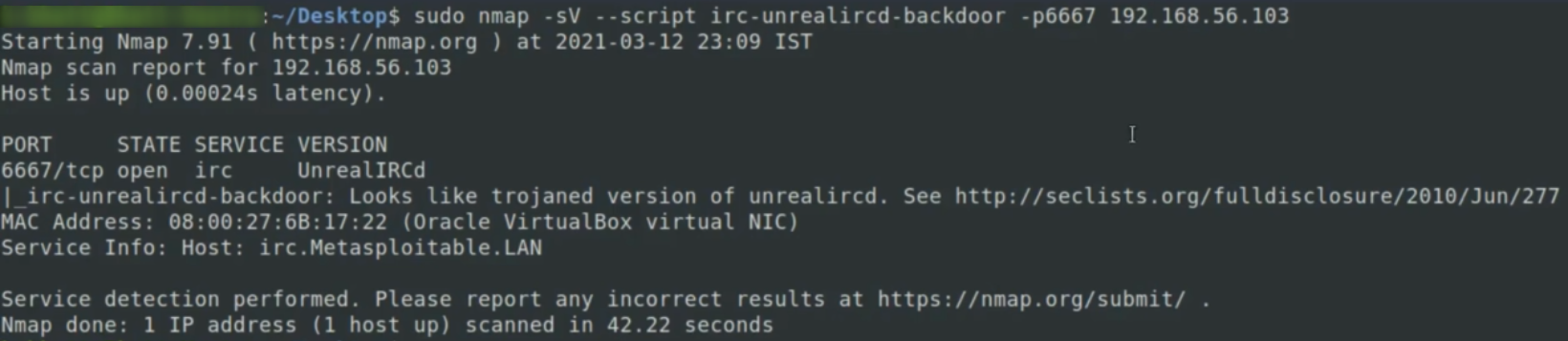

      sudo nmap -sV --script ftp-vsftpd-backdoor -p 6667 192.168.56.103


    • vsftpd

• here is the nmap script source website.

• and useful guide here from securitytrails.

scripts can be found locally

• /usr/share/nmap/scripts/
• /usr/share/nmap/nselib/

SQL server auditing

• some user and database data is required for this
• this command will list all databases on SQL server

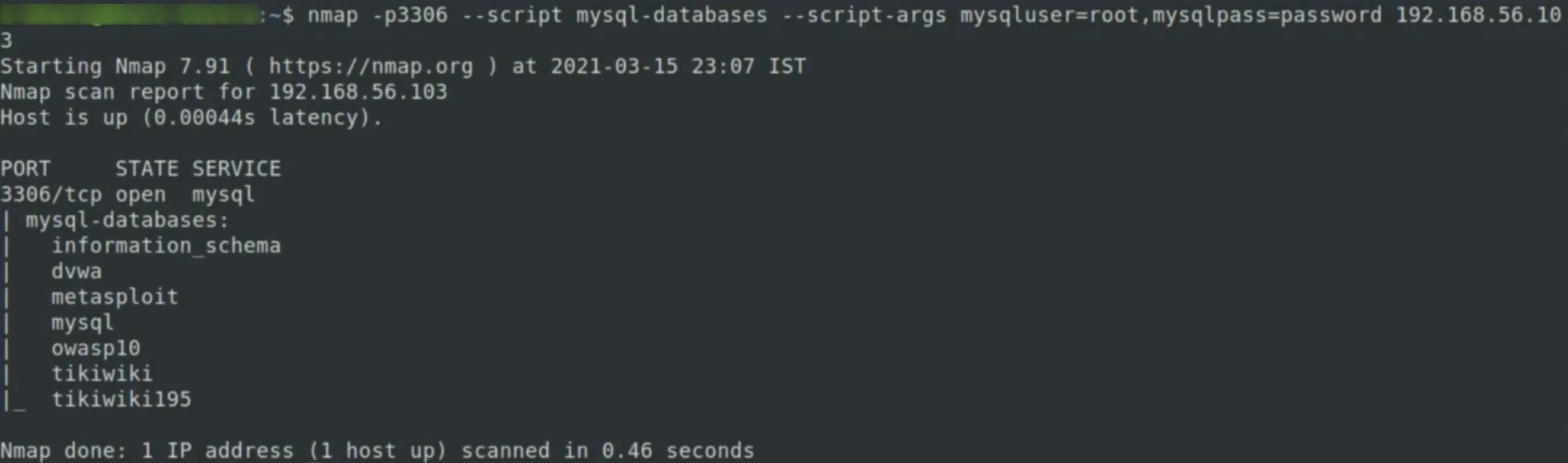

list databases

syntax:

nmap -p 3306 --script mysql-databases --script-args mysqluser=root,mysqlpass=password 192.168.56.103

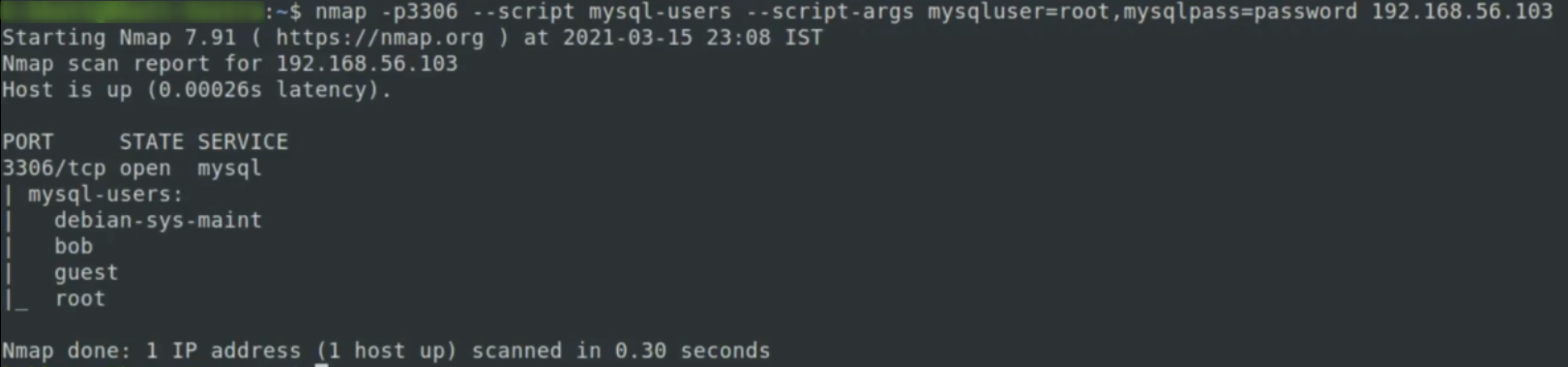

list users

syntax:

nmap -p 3306 --script mysql-users --script-args mysqluser=root,mysqlpass=password 192.168.56.103

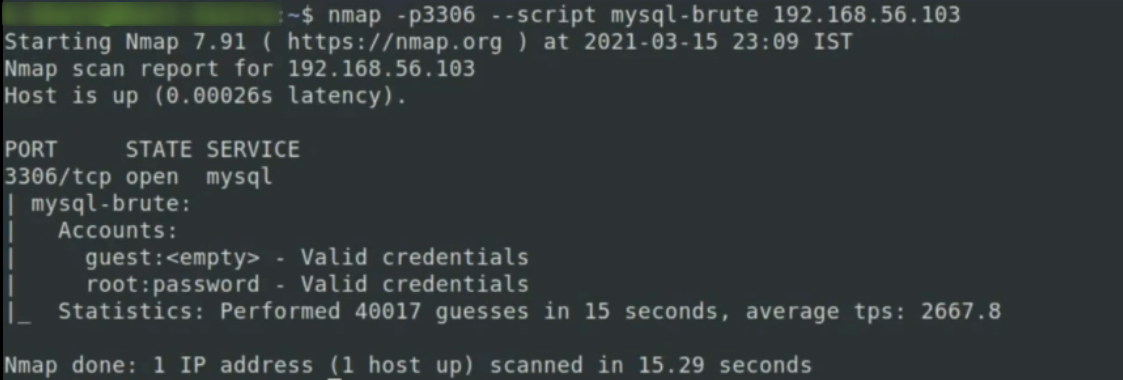

bruteforcing the credencials on sql server

syntax:

nmap -p 3306 --script mysql-brute 192.168.56.103

• cis script for security audit of sql configuration

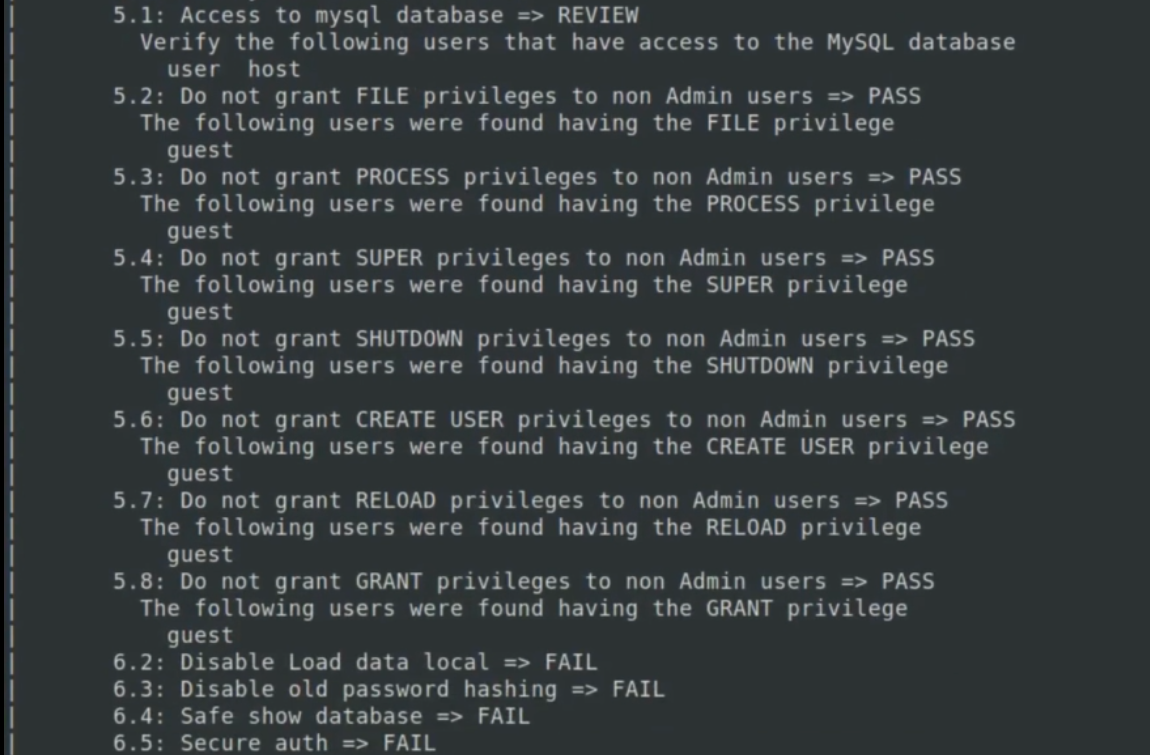

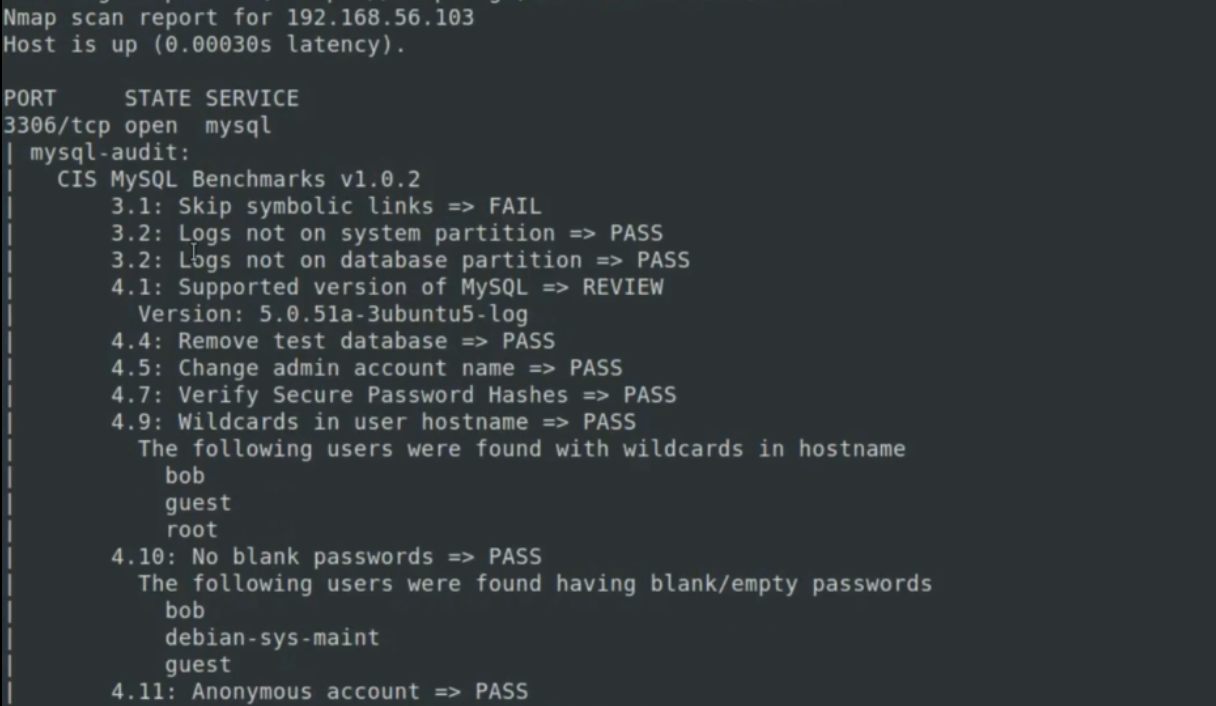

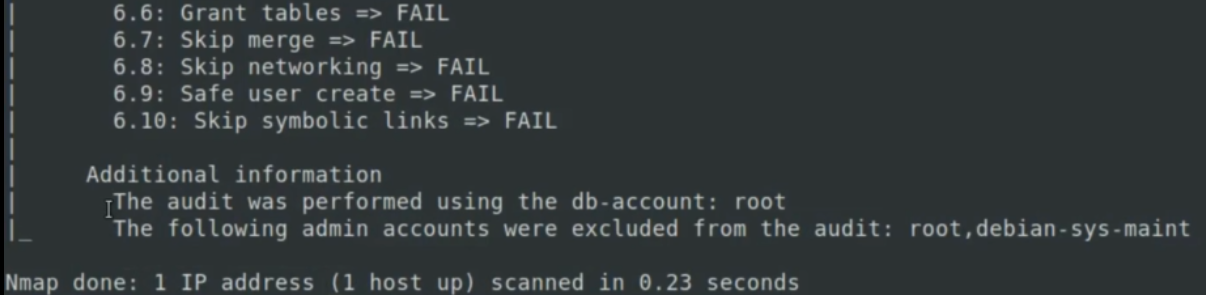

  SQL security audit

  syntax:

  nmap -p 3306 --script mysql-audit --script-args mysql-audit.username=root,mysql-audit.password=password,mysql-audit.filename=/usr/share/nmap/nselib/data/mysql-vis.autit 192.168.56.103




SMTP server audit

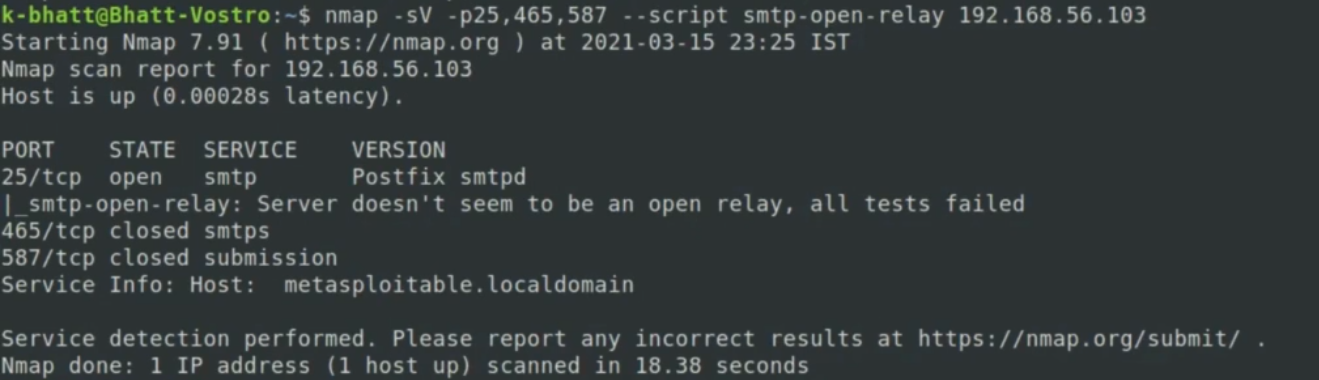

open SMTP server check

• we will be performing SMTP server security audit
• first one is to check SMTP open server which is high security issue.

syntax:

nmap -sV -p 25 --script smtp-open-relay 192.168.56.103

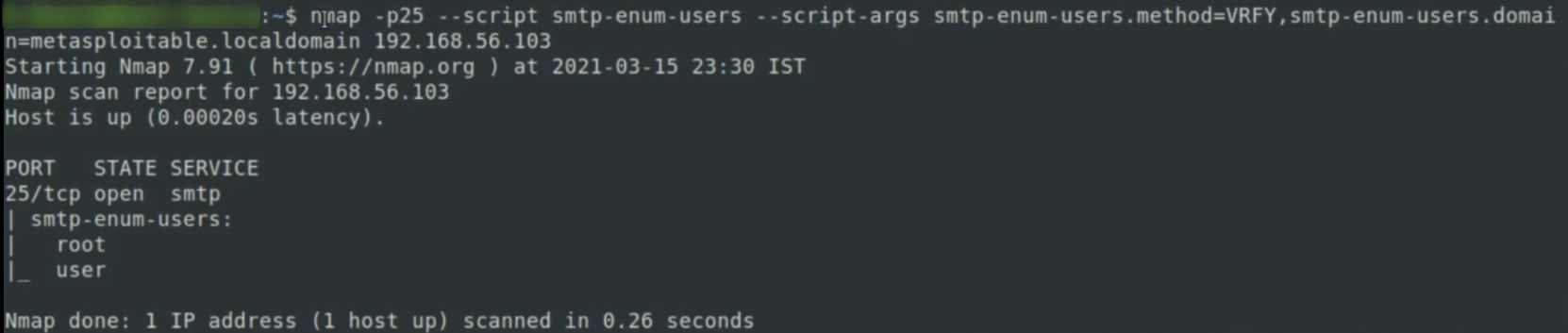

SMTP user enumeration

• next one is user enum script that performs enumeration of existing users on SMTP server

syntax:

nmap -p 25 smtp-enum-users --script-args smtp-enum-users.method=VRFY,smtp-enum-users.domain=metasploitable.localdomain 192.168.56.103

advanced script scans

• next one is scanning port 80 with all scripts that are in the category “not exploit”
  syntax

  sudo nmap -sV --script "not exploit" -p 80 192.168.56.103


  –> this will provide huge amount of information
